What Are Multistage Pumps
Basic Working Principle
Multistage pumps belong to the centrifugal pump category. They contain several impellers fixed on one rotating shaft within a unified housing. Every impeller imparts energy to the moving liquid. Pressure builds progressively as fluid passes through consecutive stages. This arrangement produces considerably greater pressures than single-stage units. Simultaneously, it maintains a notably space-efficient profile.
Key Structural Features
A typical multistage pump incorporates either horizontal or vertical split housings. Multiple impellers align sequentially along the shaft. Accurately manufactured shaft and bearing systems ensure reliable operation. For illustration, the LDD (BB4) high-pressure segmented type is horizontally oriented. It features a single-housing segmented centrifugal design. Impellers face identical directions. Advanced fluid dynamics tools like computational flow analysis optimize hydraulic efficiency.
Conversely, the LTD (BB5) double-shell variant employs dual-casing construction. Externally pressurized forged enclosures guarantee secure functioning under harsh circumstances. The internal assembly permits removal without disconnecting the inlet or outlet conduits.
Benefits Over Single-Stage Pumps
Multistage designs deliver multiple advantages compared to basic single-stage alternatives:
- Superior Pressure Capacity: Each stage cumulatively develops total system head.
- Space-Smart Layout: Achieves substantial head without oversized impellers.
- Power Economy: Refined hydraulic behavior lowers electricity usage.
- Adaptable Setup: Stages can be adjusted to suit particular operational demands.
When to Choose Multistage Pumps
High Pressure and Long Distance Requirements
These pumps excel where extreme pressure or extensive fluid transfer is essential. Consider the “Qilu Petrochemical – Shengli Oilfield Million Tons CCUS Project”. Longgang’s carbon dioxide pipeline booster functions at 10 MPa pressure. It effectively moves dense-phase carbon dioxide across considerable distances.
Limited Footprint Installations
Multistage pumps present efficient answers where spatial constraints exist. They furnish substantial pressure within condensed units. Longgang’s LDD and LTD frameworks support vertical or horizontal positioning, matching site limitations.
Energy Efficiency Considerations
High-performance impellers within Longgang’s equipment markedly decrease power needs. The independently created BB2 centrifugal pump attains 90.5% hydraulic efficiency. This figure surpasses national top-tier energy standards by 3.5%.
Industrial Applications of Multistage Pumps
Power Generation and Boiler Feed Systems
These pumps prove vital in electricity production facilities. They manage boiler feed water supply under intense heat and pressure. Longgang’s LDD series regularly serves boiler feed and condensate movement in power stations.
Water Treatment and Desalination Plants
Reverse osmosis desalination demands high-pressure pumping solutions. Longgang’s LDD performs admirably in seawater purification initiatives. Its outstanding cavitation resistance enables reliable functioning.
Oil & Gas and Petrochemical Industries
Multistage pumps execute crucial tasks across petrochemical procedures. The LTD series transfers purified or slightly particulate-laden liquids. Applications include crude oil movement and offshore hydrocarbon processing.
Mining, Slurry, and Dewatering Operations
These units also function in excavation scenarios. They dewater deep mine shafts or move slurry over extended paths under demanding pressure situations.
Highlighted Longgang Multistage Pump Models

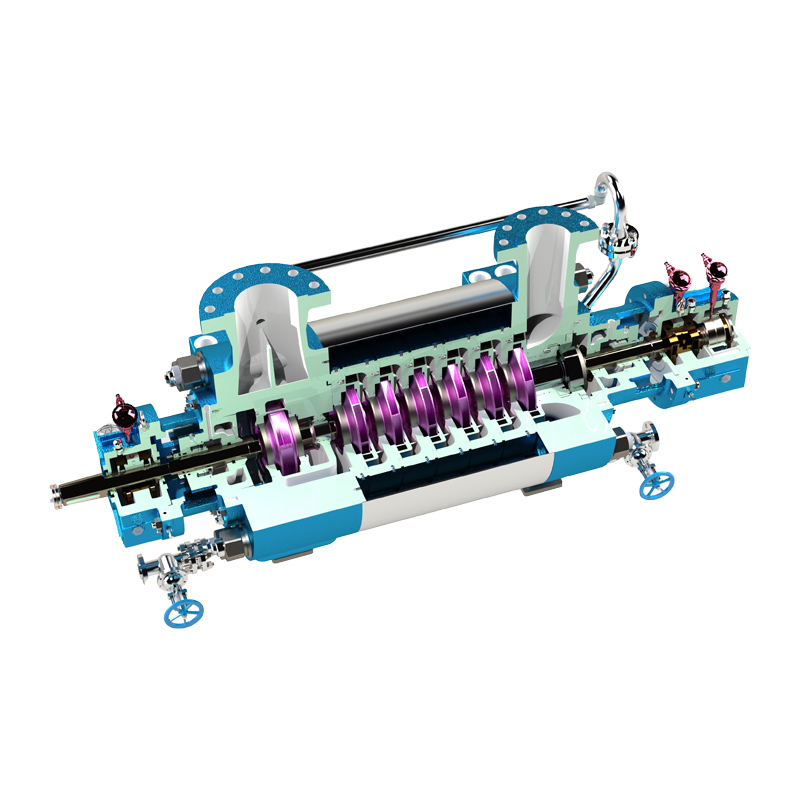

LDD(BB4)-High Pressure Segmented Multi-stage Centrifugal Pump
The LDD(BB4) series encompasses forty distinct configurations. Development employed PUMPCAD applications and flow simulation methods. It supports heads reaching 3000m and pressures to 30 MPa. Excellent cavitation resistance characterizes its operation. Its drum-disc-drum balancing system minimizes axial bearing loads.

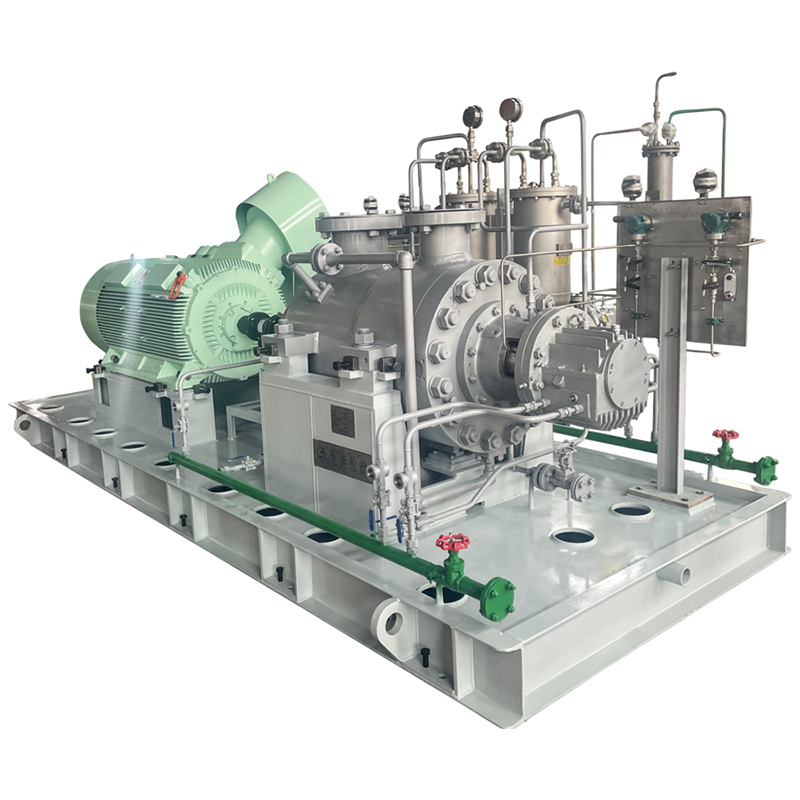

LTD(BB5)-Double Shell Multi-Stage Centrifugal Pump
The LTD(BB5) model incorporates twin-casing architecture with central bracing. It withstands temperatures approaching 450°C. Users select between hot-mounted or sliding impeller arrangements. Bearing choices include ZH sliding types or ZQ forced-lubrication versions with thorough monitoring.
Key Product Features from Longgang
Corrosion-Resistant Materials for Harsh Environments
Longgang produces specialty alloy pumps resisting aggressive chemicals. These handle diluted sulfuric acid, hydrochloric acid, concentrated sulfuric acid, caustic soda, and comparable substances. They suit chemical sectors managing highly corrosive fluids.
Modular Design for Easy Maintenance
The LTD’s core assembly extracts effortlessly without pipeline disturbance. This substantially reduces service downtime.
High Efficiency Impellers for Energy Savings
Advanced hydraulic shaping guarantees peak impeller performance. Cavitation dangers diminish considerably. This creates notable operational expense reductions over prolonged periods.
Installation and Maintenance Tips
Proper Alignment and Foundation Guidelines
Confirm foundations are level and sufficiently sturdy. They must support dynamic operational loads. Verify shaft positioning before activation using dial gauges or laser alignment instruments. This prevents early seal or bearing deterioration.
Routine Inspection and Seal Replacement Intervals
Regular examinations should track vibration intensity, bearing temperature, seal leakage pace, and lubricant state. Replace mechanical seals per manufacturer timelines or earlier if wear indicators surface.
Choosing the Right Longgang Model for Your Needs
Matching Flow Rate and Head Requirements
Select models according to the necessary flow (Q) and head (H). Examples:
- LDD: Q = 5–1200 m³/h; H = to 3000 m
- LTD: Q = 5–1200 m³/h; H = to 3000 m; T = -80°C~+450°C
Our technical group provides tailored sizing guidance matching your system parameters.
Material Compatibility with Fluids Handled
For corrosive substances like acids or seawater, we advise special alloys. Options include duplex stainless steel or extra-low carbon materials. These emerged from our research partnerships with academic institutions.
FAQ Section
Q: What is the main advantage of using a multistage pump over a single-stage pump?
A: Multistage pumps attain substantially higher pressures through added stages. Motor dimensions remain practical, making them perfect for high-head uses like boiler feed systems.
Q: Can I customize a multistage pump according to my plant’s layout?
A: Certainly. Longgang Pump delivers fully personalized configurations. Choices encompass horizontal or vertical orientations matching spatial limits.
Q: How do I ensure compatibility between the pumped fluid and the materials used in the pump?
A: Our specialists assess fluid traits—temperature, pH, and abrasiveness—then suggest appropriate substances. Corrosion-resistant alloys are available via our custom services.
Q: How often should I perform maintenance on my multistage pump?
A: Conduct monthly inspections. Mechanical seals typically need replacement every 6–12 months based on operating severity. We provide advisory services for customized maintenance planning.
