In the detailed setup of a power plant, the boiler feed water setup acts as the key “blood flow system.” It makes sure water arrives at the boiler with the exact pressure and heat needed for steam production.Many plant managers and engineering teams miss the vital need to pick the proper centrifugal pump supply for this task. This mistake often causes major breakdowns. For instance, seals leak often, bearings wear out too soon, and bad cavitation leads to sudden stops plus high repair bills. When the pump, which is the core of the loop, breaks down, the whole plant grinds to a halt.
To fix these running issues, a basic pump won’t do. Instead, it calls for a strong China BB4 segmented pump built for tough high-pressure utility work. Longgang Pump has worked for years to refine the tech in the API 685 BB4 pump, which follows API 610/ISO 13709 rules. This effort wipes out typical industry troubles and offers a sturdy fix that promises steady output and lasting dependability.
Longgang Pump: A Legacy of Engineering Excellence
Started in 2001, Longgang Pump serves as a focused maker known as a national “high-tech enterprise” and a “Shandong Province specialized and innovative enterprise.” With 76 million yuan in registered funds and a top-level accuracy test stand, we have locked in our role as a Grade A provider for big names like CNPC, Sinopec, and CNOOC. Although our skills cover oil and chemical fields, our targeted centrifugal pump supply for power sites leads our research and development wins.
The Critical Role of High-Pressure Segmented Multistage Centrifugal Pumps
Inside a power plant, the boiler water move process means shifting hot, air-free water from the deaerator to the boiler drum. For this, a pump must create a huge lift while staying steady under strong inlet pressures. The LDD (BB4) series from Longgang Pump is built just for this high-pressure boiler feed water job.
Why the BB4 Segmented Design?

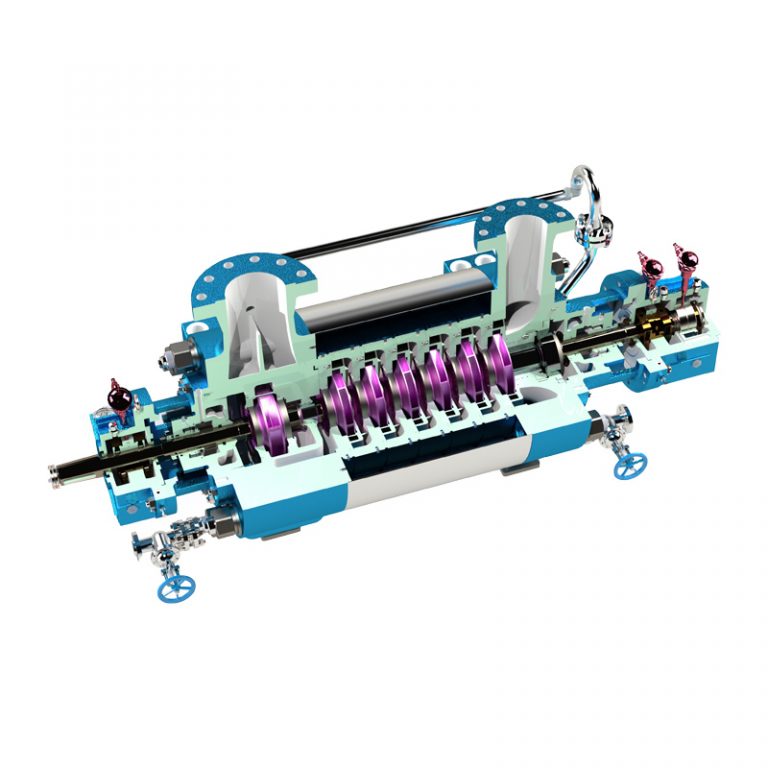

The BB4 setup is a side-to-side, single-shell, ring-style multistage pump. Unlike split-side pumps (BB3), the ring style handles higher pressure levels (up to 30 MPa) and manages heat growth better. Because of these benefits, the China BB4 segmented pump stands out as the top pick for mixed cycle power sites, plant-based fuel setups, and factory solar power use.
Hydraulic Efficiency through Advanced Simulation
We create our API 685 BB4 pump types with tools like PUMPCAD software and CFD (Computational Fluid Dynamics) 3D flow modeling. This careful planning makes sure each pump stage runs at its best water flow point. As a result, it cuts energy waste and boosts the output of the boiler water movement task.
Technical Highlights of the LDD(BB4) Series
By picking Longgang Pump as your source for centrifugal pump supply, you get hold of our own tech that tackles the trust issues in today’s power plants head-on.
1. Superior Axial Force Balancing
A main reason pumps fail in power plants comes from leftover push along the axis from multi-stage wheels. The LDD line uses a smart drum-disc-drum combined balancing mechanism. During regular work, this setup cancels out those pushes fully. Therefore, the supports avoid extra strain. This trait greatly lengthens the pump’s working time and lowers how often supports need swapping.
2. Optimized Cavitation Performance

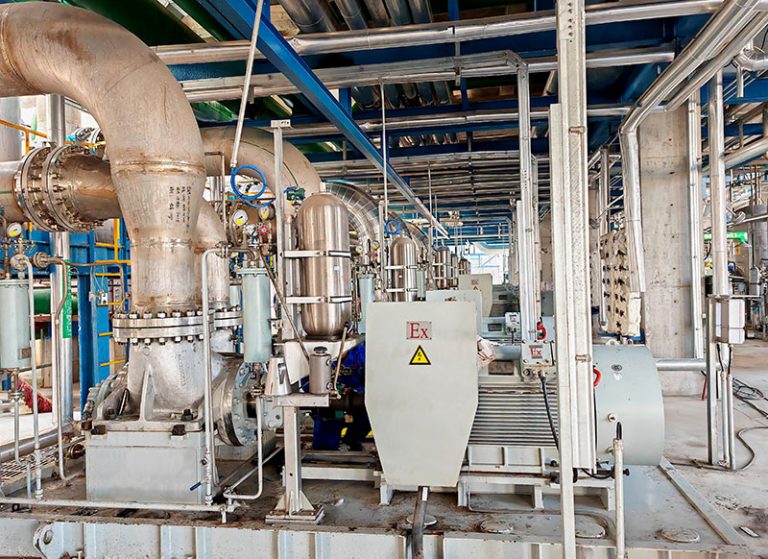

Boiler feed water runs close to its steam point much of the time, so bubble damage stays a real risk. To counter that, Longgang Pump gives bendable choices. In these, the entry wheel can take a two-sided pull form for bigger pump builds. Such a plan sharply raises the Net Positive Suction Head (NPSH) needs. Even in weak inlet spots, it stops the harm from bubble damage.
3. High-Performance Bearing Systems
Our support setups boost trust even more. Based on power level and work setup, we supply:
- ZH Series:Radial sliding bearings at both ends with a thrust bearing to limit axial movement.
- ZQ Series:Forced lubrication systems featuring four-wedge structure sliding bearings and bidirectional oil-injection tilting pad bearings, equipped with integrated temperature and vibration monitoring instruments.
Strengthening Brand Image through Quality and Certification
At Longgang Pump, we know company heads want a source they can count on. Our building skills rest on the API Q1 system and ISO 9001:2008 quality approvals. Each China BB4 segmented pump faces strict checks on our 4000 kW test stand. We do this to confirm it hits peak output levels before it heads to a customer’s place.
We give a full 12/18-month coverage and full-life help, with tech replies in 24 hours. This service pledge keeps your power plant running smoothly. Plus, it turns your centrifugal pump supply pick into a solid gain, not a burden.
Conclusion
A power plant’s boiler water moves output ties directly to the build of its high-pressure pumps. When brand heads choose the LDD (BB4) series from Longgang Pump, they put money into a product that blends smart CFD-based water flow with a tough, self-leveling machine plan. If you seek a steady API 685BB4 pump or a focused China BB4 segmented pump, our group stands ready to deliver a made-to-fit, strong-output answer that fits your exact tech needs.
Contact Longgang Pump today to discuss your next power station project and experience the difference in professional centrifugal pump supply.
FAQ
Q: What is the maximum pressure and temperature for the LDD(BB4) series?
A: The LDD(BB4) series can handle working pressures up to 30 MPa and operating temperatures ranging from -80℃ to +210℃.
Q: How does Longgang Pump ensure the reliability of the BB4 pump bearings?
A: We use a drum-disc-drum combined balancing mechanism to negate axial forces, meaning bearings do not bear these loads during normal operation, which greatly extends their life.
Q: Can the first-stage impeller be customized for better suction?
A: Yes, for large sizes or low cavitation conditions, the first-stage impeller can be designed as a double-suction structure to improve NPSH performance.
Q: Does Longgang Pump provide after-sales support?
A: Yes, we provide a 12/18-month warranty, 24-hour response for technical issues, and on-site support for installation and testing.
