Common causes of energy waste in centrifugal pumps
1. Oversized pump selection
A frequent reason for energy loss in centrifugal pumps is picking a unit that is too big for the setup’s real working situations. Such oversized devices run well away from their peak efficiency spot (BEP). This leads to extra electricity use, greater damage, and shaking. The mismatch not only squanders power but also cuts short the machine’s duration.
2. Improper system design
Badly planned tube networks with too much opposition or weak arrangement can make the pumps labor more than required. Setups with needless height shifts, extended tube paths, or small widths boost rubbing deficits and lower total productivity.
3. Throttling control methods
Employing restricting valves to manage the stream rather than altering the pump pace is another key source of wastefulness. Restricting raises forces a drop over the valve. It compels the pump to function at an elevated lift than is essential. This ends in squandered power.
4. Lack of regular maintenance
Filthy screens, eroded wheels, offset axes, and weakened gaskets all add to heightened energy utilization. Without routine checks and fixes, these problems build up gradually. They greatly impact output.
Optimizing pump selection and sizing
Matching the duty point with the system requirements
Correctly scaling a centrifugal pump to align with the setup’s true task spot—stream rate and lift—is vital for top output. A properly aligned pump works close to its BEP. There, it provides utmost productivity with the least shaking and damage.
Using Longgang’s model selection software
Longgang Pump employs sophisticated three-dimensional planning and imitation methods to examine flow designs, force areas, tension-strain links, and heat-related traits. These instruments are blended into our tailored model choice program. It assists technicians in picking the most productive pump setup for particular uses.
Benefits of right-sized Longgang centrifugal pumps
The self-developed BB2 efficient centrifugal pump is chiefly applied in crude oil transport, the coal chemical sector, natural gas handling, offshore drilling gear, and other manufacturing operations. The confirmed hydraulic best efficiency mark hits 90.5%. This is 3.5% above the national top-tier energy productivity. By selecting a correctly scaled Longgang pump adjusted via our personalized service procedure, clients can sharply cut running expenses. At the same time, they boost dependability.
Improving efficiency through variable frequency drives (VFDs)
How VFDs reduce energy consumption
Variable Frequency Drives change engine speed according to immediate need instead of operating at a steady pace. This permits exact management of the stream without restricting deficits. Even minor drops in pace can yield substantial power reductions. The reason is the cubed link between pace and electricity use.
Integrating Longgang pumps with smart VFDs
Longgang’s centrifugal pumps are completely suitable for intelligent VFD setups. Our testing platform backs variable frequency working situation trials. It guarantees that every device operates productively under changing load scenarios when combined with VFDs.
Applications suitable for VFD control
Operations with varying stream needs—such as chilling setups, water delivery grids, or chemical addition—gain a lot from VFD blending. It improves both power reductions and procedure management precision.
Upgrading to high-efficiency impellers and motors
Advantages of Longgang’s hydraulic-optimized impellers
The impeller is crafted from a superior hydraulic pattern. It offers elevated productivity and cavitation capability. In versions like LZE (OH2) or LAD (BB1), the double-suction impeller design secures self-balancing axial push. Meanwhile, it keeps functioning.
Using IE3/IE4 motors in Longgang pump systems
We supply centrifugal pumps fitted with high-productivity IE3/IE4 motors on demand as part of our tailored answers. These motors meet worldwide norms for superior energy productivity. They aid in lowering lifecycle running expenses notably.
Minimizing system resistance and pressure loss
Optimizing piping layout and diameter
Power deficit from rubbing can be lessened by choosing suitable tube widths based on stream rates. Steering clear of abrupt shrinks or swells also assists in preserving smooth flow states.
Reducing unnecessary bends and valves
Every curve or valve brings in a disturbance that cuts pumping productivity. Direct paths between parts ought to be enlarged as much as feasible during setup planning.
Matching NPSH with Longgang pump specifications

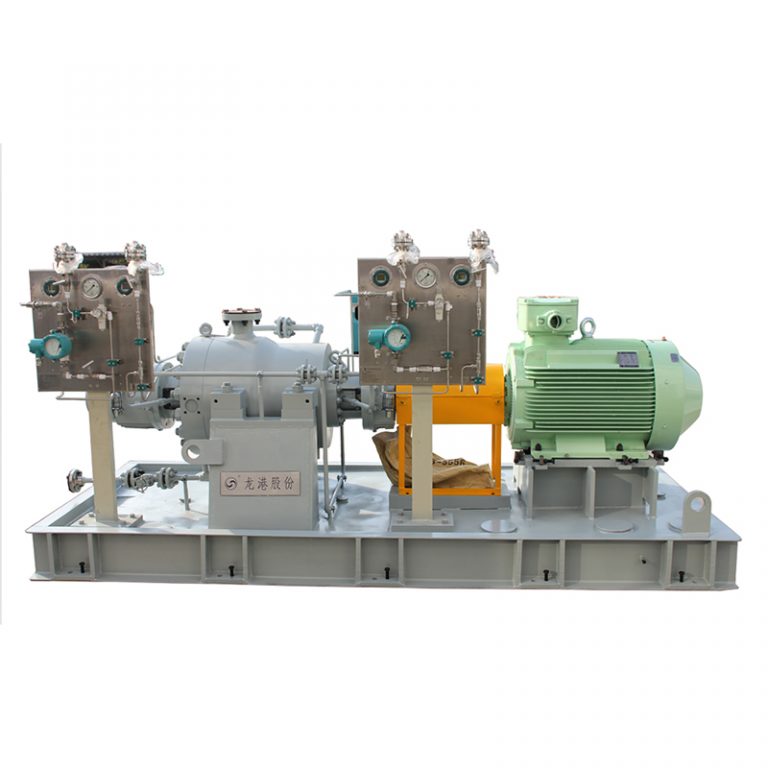

For uses needing strong cavitation opposition, like coal gasification or offshore drilling gear, Longgang provides versions like LDT (BB5) with low NPSH plans. Our technical group makes sure an adequate NPSH margin is upheld during tailored choice. This prevents cavitation harm.
Implementing regular maintenance schedules
Monitoring wear on impellers and seals
Planned reviews assist in spotting initial indicators of damage that cause lowered hydraulic output. Swapping eroded components revives original productivity degrees swiftly.
Cleaning filters and strainers regularly
Blocked screens heighten intake opposition. This makes the pump use more electricity for a reduced yield. Standard cleansing assures even functioning.
Using Longgang’s remote monitoring tools
The bearing sections are fitted with typical temperature gauging and vibration gauging openings. These can constantly monitor the unit’s working condition. Our intelligent detectors allow forward-looking upkeep by warning handlers prior to breakdowns happening.
Utilizing pump performance monitoring systems
Real-time data collection and analysis
Built-in detectors gauge factors like shaking extent, heat increase, and force difference. They permit handlers to form educated choices on working changes or upkeep requirements.
Predictive maintenance using Longgang smart sensors
By using past patterns from detector information merged with AI methods, forward-looking upkeep plans stop unscheduled halts. At the same time, they enhance asset distribution over sites.
Replacing outdated pumps with energy-efficient models
Comparing lifecycle cost vs. initial investment
Although older pumps might still work mechanically, their poor productivity results in elevated power charges over periods. Swapping them with contemporary Longgang versions gives a return on outlay via lowered electricity use by itself.
Energy savings from new-generation Longgang centrifugal pumps

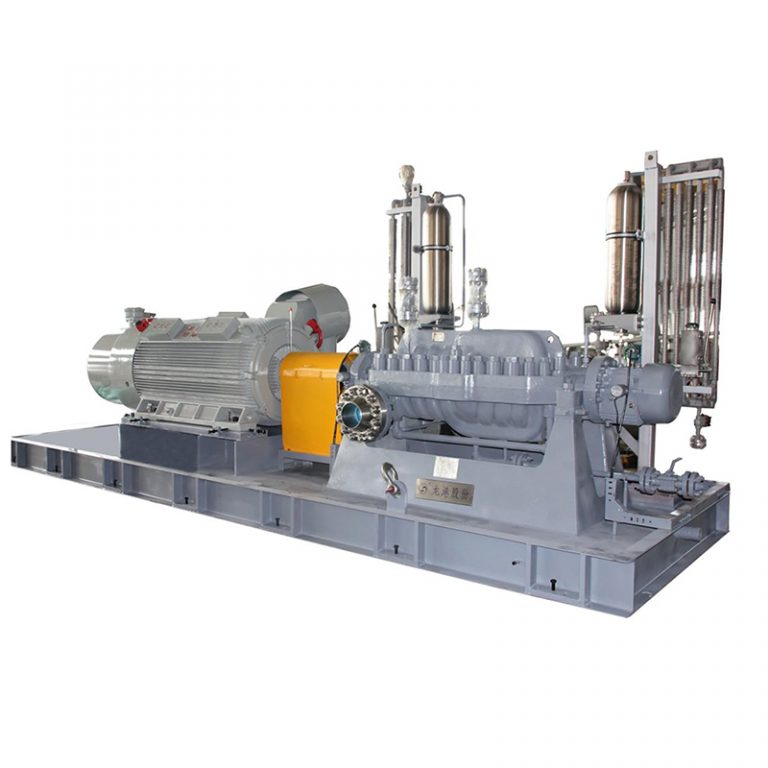

Our LCD (BB3) horizontal split multi-stage pumps provide up to 1600 meters of lift. They sustain elevated working productivities even under severe pressures up to 25MPa. These progressive plans are perfect substitutes for old setups in petrochemical facilities or power plants looking for lasting improvements via tailored answers.
FAQ
Q: How do I know if my centrifugal pump is oversized?
A: Indicators involve repeated restricting through valves, elevated shaking degrees, poor working productivity compared to rated details—Longgang supplies tailored assessments employing an imitation program to evaluate scaling precision.
Q: What’s the benefit of upgrading impellers on an old pump?
A: Hydraulic-optimized impellers enhance stream movements, which lowers power utilization by up to 10%—our group supplies tailored upgrade packages planned especially for your current model line.
Q: How often should I schedule maintenance checks?
A: For manufacturing uses, we suggest every three-month reviews; yet, employing our distant watching instruments allows immediate condition-grounded planning adjusted precisely via tailored service schemes provided by Longgang.
