In the complex world of coal, chemical, and petrochemical operations, procurement managers and plant engineers often face a major gap in knowledge: picking the right drainage and sump pump setup for dangerous or hot fluids. They might select typical surface pumps or badly designed vertical pumps. This leads to common issues like motor burnouts, shaft shakes, and severe seal breakdowns. These problems arise because the pumps cannot manage changing submersion levels or unstable substances. Such troubles raise upkeep expenses. Moreover, they endanger the whole site’s safety.
To fix these issues, you need a collaborator with deep technical know-how. Longgang Pump has served as a dedicated maker since 2001. We supply effective centrifugal pump supplies to fields like petroleum, metallurgy, and water treatment. Recognized as a national “high-tech enterprise” and a Grade A supplier for CNPC, Sinopec, and CNOOC, we focus on connecting tough chemical needs with solid mechanical performance.
The Fundamentals of Chemical Fluid Dynamics
To improve a chemical process, you should grasp the basic mechanical ideas behind the gear first. Technical buyers commonly ask: How does a pressure pump work in a submerged setting? In a VS4 setup, the motor sits above the base plate. It powers a lengthy line-shaft that links to the underwater impeller. When the impeller spins, it generates centrifugal force. This force speeds up the liquid. Then, it turns the spinning energy into the pressure required to raise the fluid from deep sumps or tanks into the processing line.
Which Centrifugal Pumps are Best for Chemicals Processing Applications?
Choosing the proper gear depends on the setup surroundings. For tasks like sump draining, recovering hazardous liquids, and unloading in refineries, the LY(VS4) series serves as the top choice in the field. It features a single-stage, single-suction, radially split, volute-type line-shaft driven submerged pump. We design it fully to meet API 610 11th edition guidelines. Thus, it acts as a reliable VS4 long shaft pump supply for chemical processing, built especially to deal with pure liquids or those with small amounts of particles.
What are the Most Energy-Efficient Centrifugal Pumps for Chemical Plants?
In chemical plants, energy savings come from smart hydraulic design. At Longgang Pump, we apply cutting-edge PUMPCAD software and CFD three-dimensional fluid simulation to cut down on inner flow wastes. For example, our custom-built pumps achieve proven hydraulic peak efficiencies of 90.5%. This exceeds the national first-level energy standard by 3.5%. If you pick a durable China VS4 long shaft pump for high flow operations, your site can lower its environmental impact. At the same time, it keeps up strong output levels.
Technical Highlights of the LY(VS4) Series
The LY(VS4) series excels through its sturdy build and fresh technical features. These tackle the “brief service life” issue seen in old-style sump pumps.

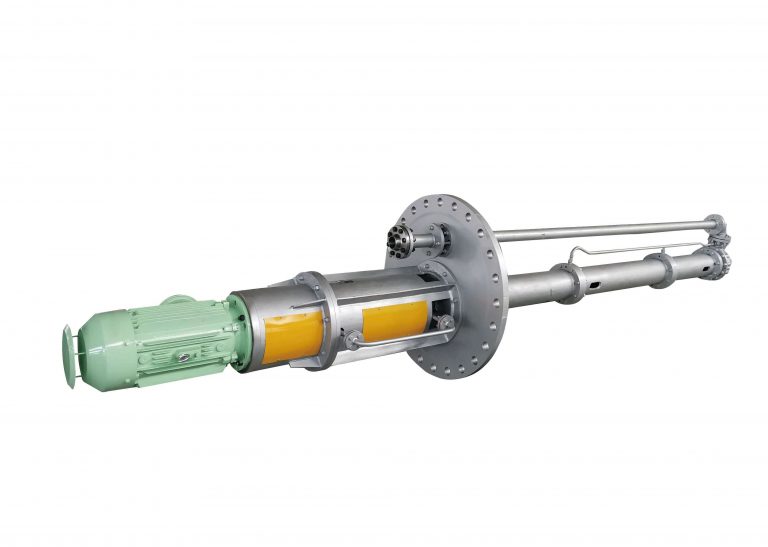

Precision Rotor and Axial Force Management
A key reason for breakdowns in long-shaft pumps is leftover axial thrust. Our VS4 line uses a clever mix of sealing rings and balance holes to offset most of that thrust. For the leftover pressure, we add a set of angular contact ball bearings. As a result, the rotor stays steady even in high-pressure runs. This careful design positions us as a top pick for affordable VS4 long shaft pump wholesalers for industrial buyers who demand solid quality without cuts.
Advanced Lubrication and Sealing Systems
For ongoing use, our pump bearing parts (ZL series) rely on thin oil lubrication. Depending on the fluid’s heat, we can add air or water cooling to shield these parts further. The heat levels range from -80℃ to +450℃. Also, the shaft sealing setup allows for easy changes. Options include single face, double face, in-series, or even dry gas seals. These suit the strict safety rules for moving unstable chemicals.
Flexible Design for Deep Sump Applications
The durable China VS4 long shaft pump for high flow operations allows a top submersion length of up to 7 meters. We use a firm shaft build and a “key transmission torque” coupling setup. Because of this, the running speed stays well under the first critical speed. Therefore, it avoids the harmful shakes often present in cheaper options.
Case Study: Powering Coal Chemical Innovation
Our dependability at Longgang Pump shows through our wide role in big local projects. We supply vital station pumps for hard processes, such as coal gasification, coal to methanol, and coal to olefins.

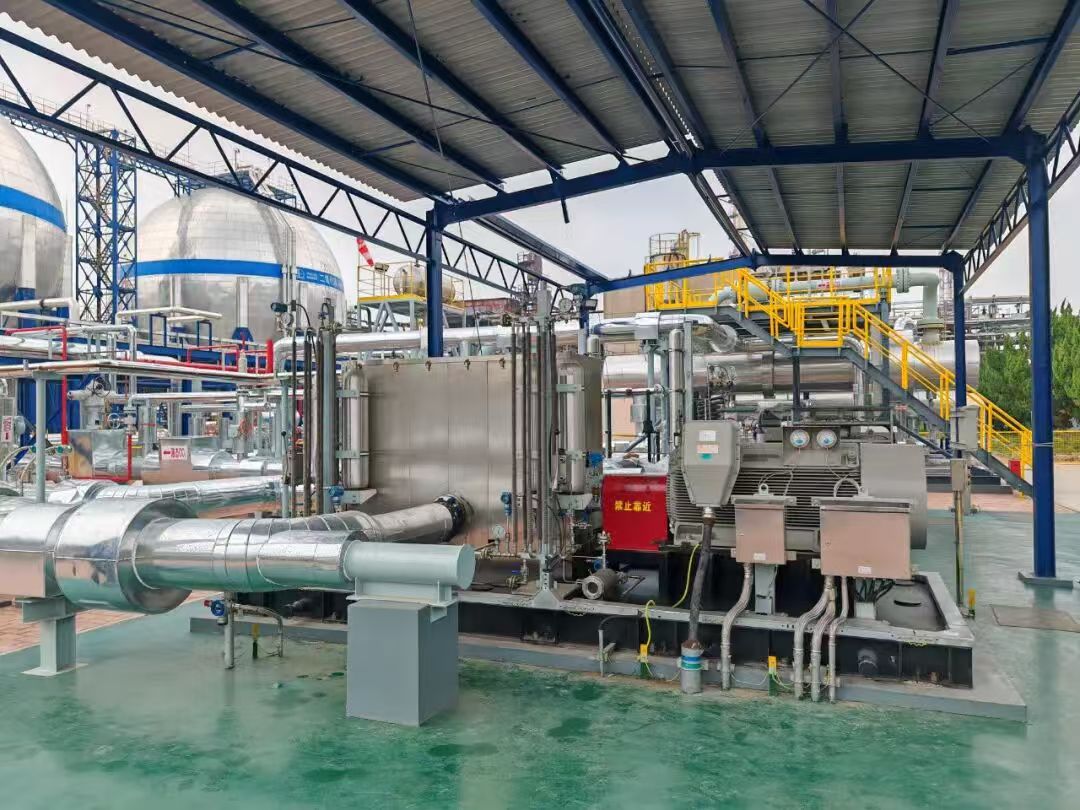

One clear sign of our skill is the “Qilu Petrochemical – Shengli Oilfield Million Tons CCUS Project”. This project dealt with very high-pressure CO2 transport at 10.0 MPa. It highlighted our skill in reaching 100% localization for key gear. We created self-balancing structures and used long pump shaft ultra-deep grinding processes. Through these, we fixed stability and output challenges that once made plants depend on costly foreign goods. We apply this same high-accuracy making to our reliable VS4 long shaft pump supply for chemical processing. In turn, our VS4 models offer a steady base of results in coal chemical sites.
Why Partner with Longgang Pump?
As a reliable VS4 long shaft pump supply for chemical processing, we give more than a single item. We offer full support throughout the product’s life.
- Manufacturing Power:Our workshop spans 8000m² and follows the API Q1 quality system.
- Testing Excellence:We maintain a 1st-level accuracy test bench with a top power of 4000 kW. This ensures each pump hits its performance curve before leaving.
- Warranty and Service:We grant a 12/18-month quality warranty. Plus, we respond in 24 hours to any technical or quality concerns.
For brand owners wanting a durable China VS4 long shaft pump for high flow operations or seeking affordable VS4 long shaft pump wholesalers for industrial buyers, Longgang Pump brings the focused hydraulic fixes needed to boost today’s chemical processes.
Contact Longgang Pump today to receive a customized technical proposal and elevate your chemical plant’s efficiency.
- Address: 12 Jingliu Road, High-Tech zone, Yantai, Shandong, China
- Phone:+86 18865532020 / 400-111-9188
- Email:lg-pump@lg-pump.com / info@longgangpump.com
FAQ
Q: What is the maximum insertion depth for the LY(VS4) pump?
A: Our VS4 series supports a maximum insertion depth of 7 meters, using a line-shaft driven structure.
Q: Which centrifugal pumps are best for chemical processing applications in deep sumps?
A: The API 610 compliant VS4 long shaft submerged pump is best because it keeps the motor above the liquid while providing rigid support for the submerged impeller.
Q: How does the VS4 pump balance axial forces?
A: It uses a combination of sealing rings and balance holes to negate most forces, with angular contact ball bearings handling any residual loads.
Q: Does Longgang Pump provide support for pump selection?
A: Yes, we offer technical advisory services, including pump selection suggestions and operational training for all clients.
Q: What is the temperature range for the VS4 series?
A: Our VS4 pumps can operate in environments ranging from -80℃ to +450℃, with various cooling options available for the bearings.
