In the fast-changing world of today’s industry, the need to manage high-pressure, high-temperature, and dangerous fluids has grown more important than ever. Processing plants push for better efficiency and tougher safety rules. Thus, selecting the right pumping technology forms the basis of smooth operations.

At Longgang Pump, we have dedicated more than 20 years to creating solutions that combine proven dependability with forward-thinking advances. At the heart of our efforts stands our star product, the Double Shell Multi-Stage Centrifugal Pump BB5. This is a fine example of hydraulic design, built to work well in places where ordinary pumps struggle. In the unstable settings of refineries or the tricky reactions in fertilizer making, our equipment keeps your processes running without stops and with good output.

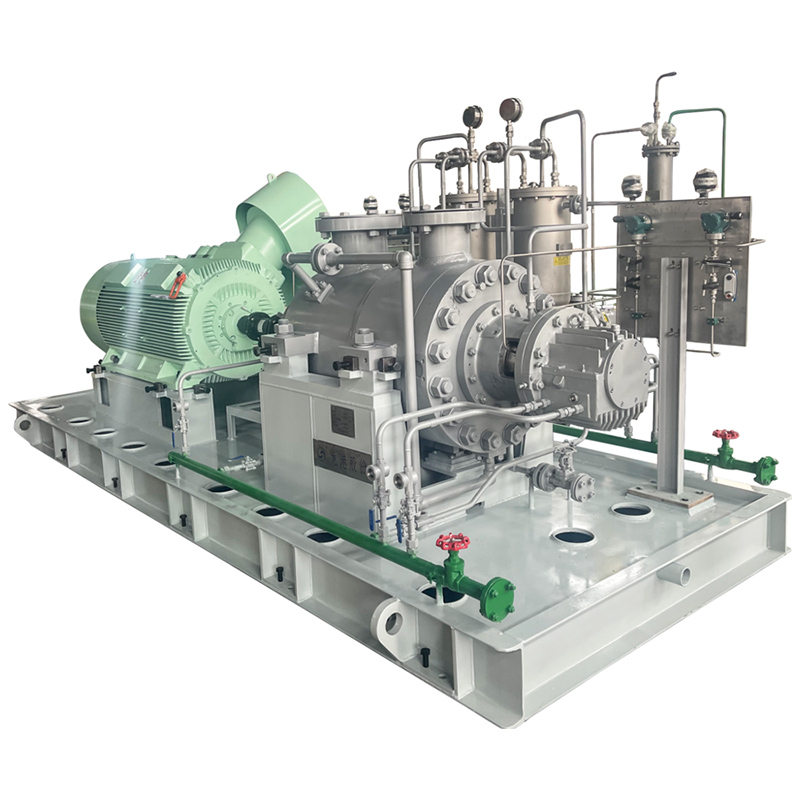

Understanding Double Shell Multi-Stage Centrifugal Pump BB5 Design

• Compliance with API 610 (ISO 13709) Standards: A strong high-pressure setup depends on its solid build. Our LTD (BB5)-Double Shell Multi-Stage Centrifugal Pump is carefully made to meet the current API 610 (ISO 13709) BB5 rules. It uses a horizontal, center-supported, double-casing setup.
• The Structural Benefits of Double-Casing Construction: This “barrel” style adds a backup layer for pressure containment, which matters a lot when dealing with fluids in harsh conditions. We provide 40 different sizes in the LTD (BB5) line, so it fits various hydraulic needs exactly.
• Advanced Hydraulic Systems for High Efficiency: To achieve top results, we rely on modern tools like PUMPCAD hydraulic design software and CFD three-dimensional fluid simulation systems.

These help the Double Shell Multi-Stage Centrifugal Pump BB5 achieve solid key specs. Flow rates go from 5 to 1,200 m³/h. Heads reach up to 3000 meters. Working pressures hit 30 MPa. Plus, it works in temperatures from -80℃ to +450℃. That range makes it one of the most flexible items in our collection.

Centrifugal Pump Applications in Modern Industry

Optimizing Refining and Petrochemical Operations

The wide use of the Double Shell Multi-Stage Centrifugal Pump BB5 shows clearly in its many centrifugal pump applications in industry. In the past, these pumps served as key tools in the oil and gas field. At Longgang Pump, we have delivered ready-to-use systems for large setups. These include refineries handling tens of millions of tons and ethylene plants managing millions of tons.

Supporting the Qilu Petrochemical CCUS Project

One clear case of our role comes from the Qilu Petrochemical – Shengli Oilfield Million Tons CCUS Project. For this key green initiative, we supplied vital pump gear. It handles 125 m³/h at 800 m, powered by a 500 kW motor. This setup shows how we manage high-pressure CO2 boosting for carbon capture and storage.

API 610 Pumps in Diverse Industrial Processes

Outside oil operations, API 610 pump applications in industrial processes now reach into focused areas. High-pressure boiler feed setups stand out as a main case. We put our tech to work in the high-pressure self-balancing boiler water supply for the Qingdao Refinery Liquefied Gas Safety Improvement (maleic anhydride) project. Such use demands constant reliability to protect the steam system’s safety and steady run.

A more advanced example appears in the Yulong Island Refining and Chemical Integration Project (Phase I) in 2023. Here, we supplied a feed oil circulation pump with a BB5-lined LCD (BB3) structure. It is made to move high-temperature hot oil. This mixed design highlights how Longgang Pump can adjust its main LTD (BB5) tech to fit special process needs. These often involve both strong pressure and severe heat loads.

Expanding Potential: From Chemicals to Fertilizers

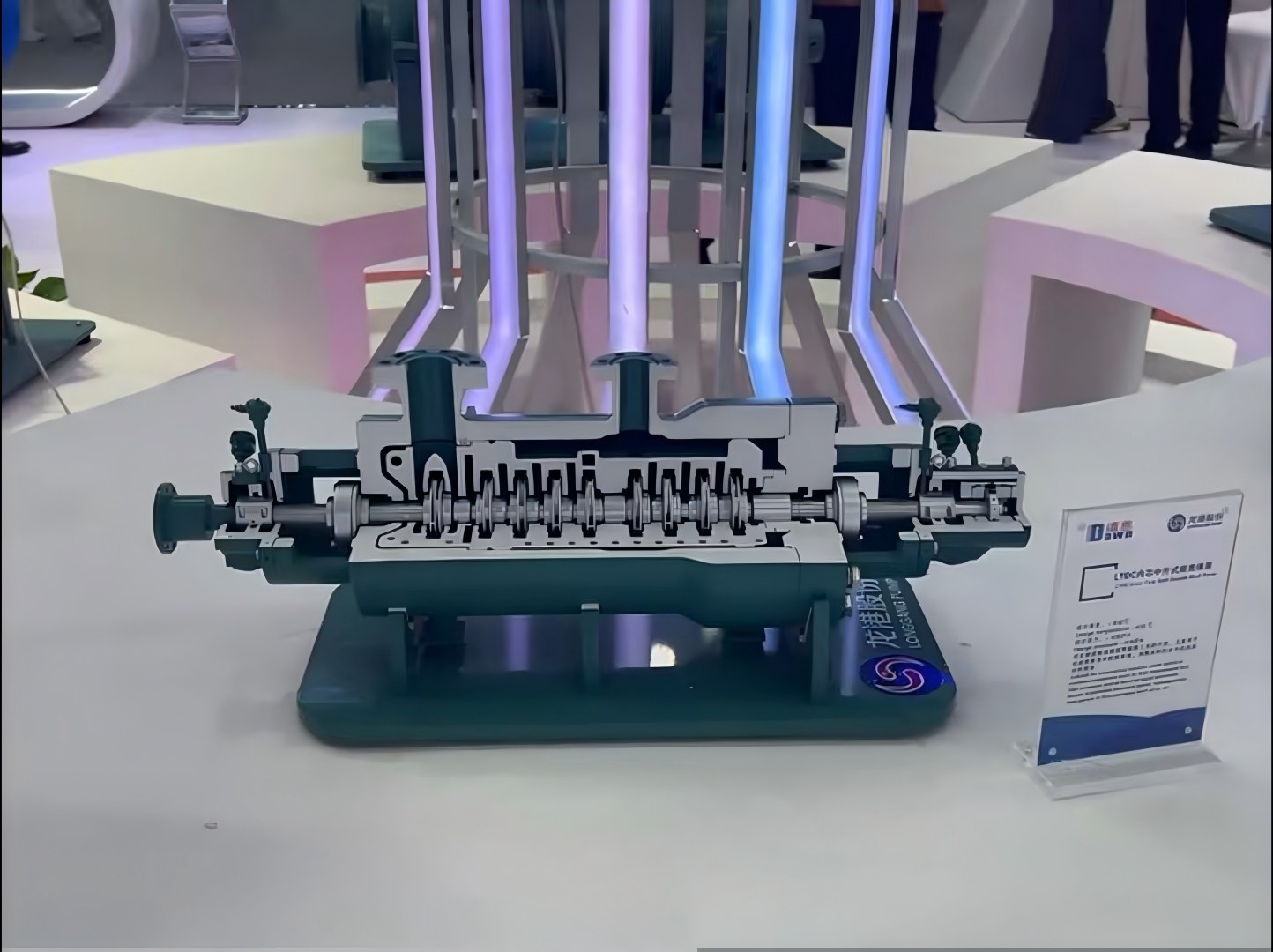

The Adaptability of BB5 to Corrosive Media

The next phase of fluid management rests on adapting to harsh and complicated substances. Many link the Double Shell Multi-Stage Centrifugal Pump BB5 to oil-based fluids. Yet, its role in chemicals and fertilizers holds great promise. We have put major funds into research to create pumps from special alloy materials. These include super-low carbon duplex stainless steel, which deals with strong acids like concentrated sulfuric acid, hydrochloric acid, and caustic soda.

Synergy with Liquid Fertilizer Axial Flow Pumps

In fertilizer plants, high-pressure mixing and fluid shifts happen all the time. There, the LTD (BB5) offers a tough answer for moving clear liquids or those with small particles. We often talk about liquid fertilizer axial flow pumps or fluid transfer axial flow pumps for big-volume, low-head jobs. However, our LTD (BB5) serves as the high-pressure core of the plant. It pushes the main steps ahead. Our skill in tailoring these units means they stand up to the exact chemical traits of today’s farm fluids.

Solving the Pain Points of Industrial Reliability

For plant operators, sudden stops from pump breakdowns cause the biggest headaches. We tackle this with better mechanical builds and backup systems. Our LTD (BB5) line includes two main bearing options to suit the job’s toughness.

At Longgang Pump, we go beyond just providing gear. We back it with ongoing help. All our items, like the LTD (BB5), LAD (BB1), and LBD (BB2) lines, come with a 12- to 18-month warranty and lifetime care. Our 24-hour reply promise means tech problems get quick fixes. This cuts risks to your output timeline. That’s why we hold Grade A status with CNPC and qualify as partners for Sinopec and CNOOC.

Conclusion

The industry keeps changing, and the load on fluid systems grows heavier each day. With the Centrifugal Pump series, Longgang Pump delivers more than equipment. We bring a flexible, high-output fix that matches your sector’s exact demands.

Do you want to improve your high-pressure fluid setups with gear you can count on? Reach out to our specialists at Longgang Pump now. Ask for a quote on the Double Shell Multi-Stage Centrifugal Pump BB5. See how we can boost your industrial workflow.

FAQ

Q: What is the primary application of a BB5 pump?

A: The Double Shell Multi-Stage Centrifugal Pump BB5, or our LTD (BB5) series, targets high-pressure and high-temperature tasks. It mainly serves boiler feed water, crude oil transport, petrochemical work, and focused uses like the CCUS projects we handled for Qilu Petrochemical. In these setups, it reliably boosts pressures to 25 MPa while managing flows up to 200 m³/h, as seen in our Shengli Oilfield installations.

Q: Why choose a double shell pump over a single shell?

A: The double-casing build in our LTD (BB5) adds a key safety shield for pressures up to 30 MPa. Should the inner case wear or leak, the outer barrel holds the fluid back. This stops dangerous sprays or major breaks, which proves vital in refineries and chemical sites. For example, during a pressure test at a client facility, this feature contained a minor inner leak without any external release, maintaining full safety compliance.

Q: How does Longgang Pump ensure the efficiency of these multi-stage pumps?

A: We apply CFD three-dimensional fluid simulation and PUMPCAD software to fine-tune each hydraulic part. Take our LBD (BB2) series, which achieved a confirmed hydraulic efficiency of 90.5%. We use the same strict methods on our LTD (BB5) series for the best energy use and output. Field data from a recent ethylene plant installation showed a 12% drop in power draw versus standard designs, thanks to these precise simulations.

Q: Can these pumps handle corrosive fluids in the chemical industry?

A: Yes, we focus on pumps built from standard anti-corrosion materials and special alloys like super-low carbon duplex stainless steel. This lets them manage tough media such as sulfuric acid and caustic soda. It broadens their fit beyond oil and gas. In a fertilizer plant handling 98% sulfuric acid at 150℃, our alloy versions ran for over 30,000 hours without corrosion issues, based on on-site monitoring reports.
